08 May 2025
Carrier’s Xarios® and Integra® units have undergone several hardware revisions over the years—particularly when it comes to micro boards. While brand-new boards always ship with the latest specification, identifying the correct version becomes crucial when selecting re-manufactured (re-man) units to ensure compatibility and ongoing serviceability.
In this guide, we’ll show you how to recognise the correct Micro Board (Microprocessor Control Board) for your application, whether you’re working with single-temp or multi-temp systems.
When choosing a new micro board, there’s no need to worry—you're receiving the latest version by default. However, if you opt for a re-manufactured board, it’s essential to match your existing unit’s version. This ensures:

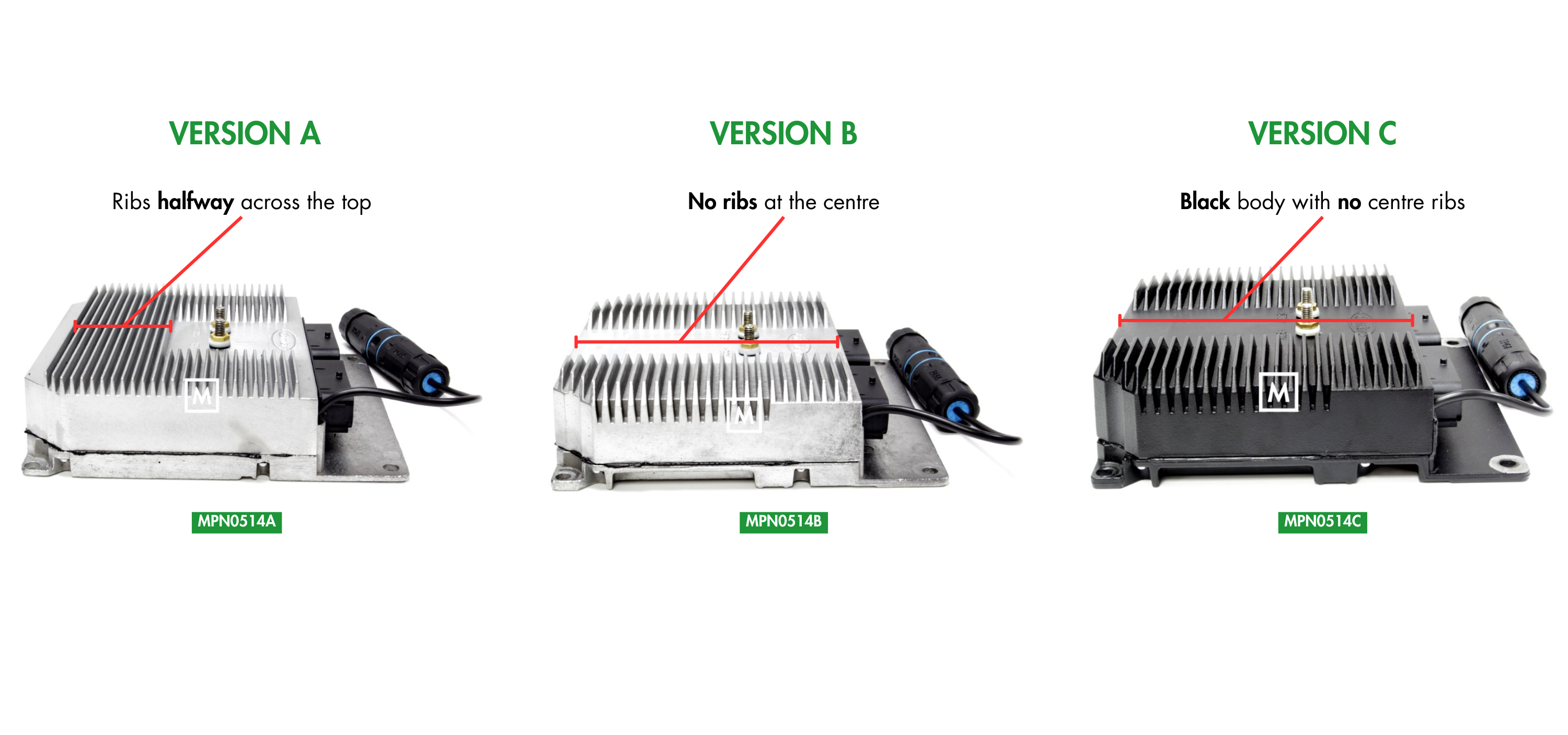

This is the most common board used in single-temperature Xarios® and Integra® systems. Carrier® has released three distinct versions over time, each easily identified by their part number and physical appearance.
|
Version |
Carrier P/N Range |
Visual Clue |
|
12-00526-XX |
Silver body with ribs halfway across the top |
|
|
12-00716-XX (up to 12-00716-51) |
Silver body with no ribs at the centre |
|
|
12-00716-52 and higher |
Black-coloured body with no centre ribs |
This board type is found in twin-board systems used for multi-temp configurations. These also follow a three-version format:
|
Version |
Carrier P/N Range |
Visual Clue |
|
91-60226-XX |
Silver body with ribs halfway across the top |
|
|
91-60338-XX (up to 91-60338-03) |
Silver body with no ribs at the centre |
|
|
91-60338-1XX and higher |
Black-coloured body with no centre ribs |
If you're in a rush, the quickest way to identify the board version is:
Make sure to check the part number printed on the board to confirm compatibility, especially when sourcing re-manufactured units.
If you're unsure which version you have or need advice on replacement options, our technical team is always ready to assist. Reach out with a photo of your existing board, and we’ll do the rest.
Contact us at: info@myriadparts.com
Call us on: +44 (0) 2380 71 01 68
